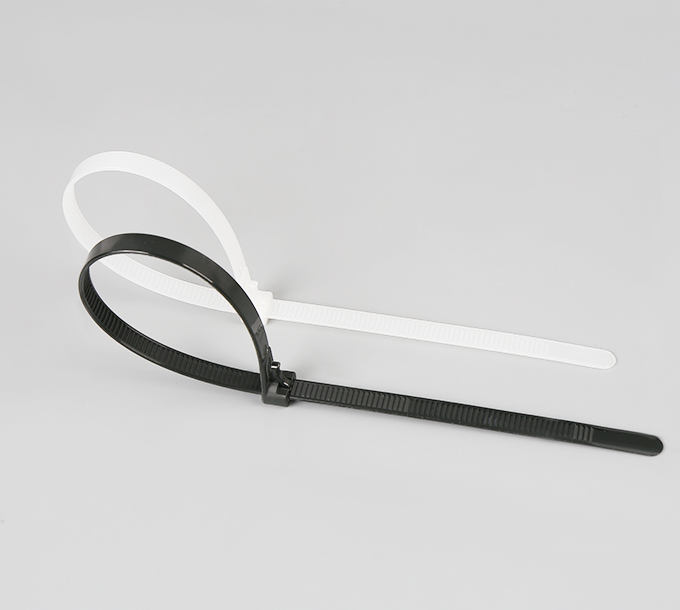

Self-Locking Nylon Cable Tie

NYLON CABLE TIE SERIES

Material: made of nylon 66 approved by UL, fire grade 94V-2, acid resistance, corrosion resistance, good insulation, not easy to aging, strong bearing capacity. Color: the standard color is natural (white), and there is anti-ultraviolet black. Spec

Inquiry： +86 13868506510

Product details 01

Product Overview

◆Material: made of nylon 66 approved by UL, fire grade UL94V-2, acid resistance, corrosion resistance, good insulation, not easy to aging, strong bearing capacity.
◆Applicable temperature range:-40 ℃-85 ℃
◆Installation temperature range:-20 ℃-85 ℃
◆Color: the standard color is natural, black, and anti-UV black. Special colors are welcome to be customized.

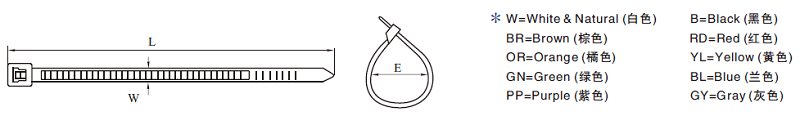

Technical parameters

编号 Item NO.	L(长)		W(宽) (mm)	最大捆扎范围 Max.Bundle Dia. E (mm)	拉力 Min.loop Tensile Strength
编号 Item NO.	Inch	mm	W(宽) (mm)	最大捆扎范围 Max.Bundle Dia. E (mm)	LBS	KGS
WH-3×60	2 3/8″	60	2.5	11	18	8
WH-3×80	3 3/16″	80	2.5	16	18	8
WH-3×90	3 5/8″	90	2.5	18	18	8
WH-3×100	4″	100	2.5	22	18	8
WH-3×120	4 3/4″	120	2.5	28	18	8
WH-3×140	5 1/2″	140	2.5	33	18	8
WH-3×150	6″	150	2.5	35	18	8
WH-3×160	6 1/4″	160	2.5	40	18	8
WH-3×200	8″	200	2.5	53	18	8
WH-3×250	10″	250	2.5	64	18	8
WH-4×100	4″	100	3.6	22	40	18
WH-4×120	4 3/4″	120	3.6	30	40	18
WH-4×140	5 1/2″	140	3.6	33	40	18
WH-4×150	6″	150	3.6	35	40	18
WH-4×180	7″	180	3.6	44	40	18
WH-4×200	8″	200	3.6	53	40	18
WH-4×220	8 5/8″	220	3.6	58	40	18
WH-4×250	10″	250	3.6	65	40	18
WH-4×280	11″	180	3.6	70	40	18
WH-4×300	11 5/8″	300	3.6	80	40	18
WH-4×370	14 1/2″	370	3.6	102	40	18
WH-5×120	4 3/4″	120	4.6	26	50	22
WH-5×160	6 1/4″	160	4.6	39	50	22
WH-5×180	7″	180	4.6	46	50	22
WH-5×190	7 1/2″	190	4.6	48	50	22
WH-5×200	8″	200	4.8	5.	50	22
WH-5×250	10″	250	4.8	65	50	22
WH-5×280	11″	280	4.8	70	50	22
WH-5×300	11 8/5″	300	4.8	82	50	22
WH-5×350	13 3/4″	350	4.8	30	50	22
WH-5×380	15″	380	4.8	105	50	22
WH-5×400	15 3/4″	400	4.8	108	50	22
WH-5×430	17″	430	4.8	115	50	22
WH-5×450	17 3/4″	450	4.8	130	50	22
WH-5×500	19 11/16″	500	4.8	150	50	22
WH-7×150	6″	150	6.8	33	85	38
WH-7×180	7″	180	6.8	43	85	38
WH-7×200	8″	200	6.8	50	85	38
WH-7×250	10″	250	6.8	65	85	38
WH-7×370	14 1/2″	370	7.0	98	85	38
WH-8×200	8″	200	7.6	50	120	55
WH-8×250	10″	250	7.6	63	120	55
WH-8×300	11 5/8″	300	7.6	80	120	55
WH-8×350	13 3/4″	350	7.6	90	120	55
WH-8×370	14 1/4″	370	7.6	98	120	55
WH-8×400	15 3/4″	400	7.6	105	120	55
WH-8×450	17 3/4″	450	7.6	125	120	55
WH-8×500	19 11/16″	500	7.6	145	120	55
WH-8×550	21 1/16″	550	7.6	160	120	55
WH-8×600	23 5/8″	600	7.6	170	120	55
WH-8×650	25 9/16″	650	7.6	190	120	55
WH-8×750	29 9/16″	750	7.6	220	120	55
WH-9×200	8″	200	9.0	50	175	80
WH-9×300	115/8″	300	9.0	78	175	80
WH-9×400	153/4″	400	9.0	105	175	80
WH-9×450	17 3/4″	450	9.0	120	175	80
WH-9×530	20 3/4″	530	9.0	150	175	80
WH-9×550	21 1/16″	550	9.0	160	175	80
WH-9×600	23 5/8″	600	9.0	170	175	80
WH-9×650	25 9/16″	650	9.0	190	175	80
WH-9×700	27 1/2″	700	9.0	205	175	80
WH-9×760	30″	760	9.0	225	175	80
WH-9×812	32″	812	9.0	243	175	80
WH-9×920	36 1/4″	920	9.0	265	175	80
WH-9×1020	40 1/6″	1020	9.0	295	175	80
WH-9×1150	45 1/4″	1150	9.0	310	175	80
WH-9×1220	48″	1220	9.0	340	175	80
WH-9×1350	53″	1350	9.0	380	175	80
WH-9×1550	61″	1550	9.0	470	175	80
WH-10×450	17 3/4″	450	10.0	125	200	91
WH-10×500	19 11/16″	500	10.0	145	200	91
WH-12×300	11 5/8″	300	12.7	80	250	114
WH-12×400	15 3/4″	400	12.7	105	250	114
WH-12×650	25 9/16″	650	12.0	190	250	114
WH-12×750	29 9/16″	750	12.0	220	250	114
WH-12×780	30 3/4″	780	12.7	230	250	114
WH-12×1000	39 3/8″	1000	12.0	275	250	114
WH-13×540	21 1/4″	540	13.0	155	250	114
WH-1.8×100	4″	100	1.8	22	14	6.5
WH-1.9×120	4 3/4″	120	1.9	28	14	6.5
WH-1.9×150	6″	150	1.9	35	14	6.5
WH-2.0×200	8″	200	2.0	50	14	6.5
WH-2.2×60	2 3/8″	60	2.2	11	14	8
WH-2.2×80	3 3/16″	80	2.2	18	18	8
WH-2.2×100	4″	100	2.2	22	18	8
WH-2.2×120	4 3/4″	120	2.2	28	18	8
WH-2.2×150	6″	150	2.2	35	18	8
WH-2.2×200	8″	200	2.9	50	18	8
WH-2.9×150	6″	150	2.9	35	33	15
WH-2.9×200	8″	200	2.7	50	33	15
WH-2.7×250	10″	250	2.9	65	33	15
WH-2.9×300	11 5/8″	300	2.9	80	33	15
WH-3.2×150	6″	150	3.2	35	40	18
WH-3.2×180	7″	180	3.2	42	40	18
WH-3.2×200	8″	200	3.2	50	40	18
WH-3.2×250	10″	250	3.2	65	40	18
WH-3.2×300	11 5/8″	300	3.2	80	40	18
WH-3.7×350	13 3/4″	350	3.7	90	40	18
WH-3.7×400	15 3/4″	400	3.7	108	40	18
WH-4.2×180	7″	180	4.2	42	50	22
WH-4.2×200	8″	200	4.2	50	50	22
WH-4.2×250	10″	250	4.2	65	50	22
WH-4.2×300	11 5/8″	300	4.2	80	50	22
WH-4.2×350	13 3/4″	350	4.2	90	50	22
WH-4.2×380	15″	380	4.2	102	50	22
WH-4.2×400	15 3/4″	400	4.2	105	50	22
WH-5.2×180	7″	180	5.2	42	65	30
WH-5.2×200	8″	200	5.2	50	65	30
WH-5.2×250	10″	250	5.2	65	65	30
WH-5.2×300	11 5/8″	300	5.2	80	65	30
WH-5.5×350	13 3/4″	350	5.5	90	65	30
WH-5.5×400	15 3/4″	400	5.5	105	65	30
WH-5.5×500	19 11/16″	500	5.5	150	65	30
WH-6.0×270	10 5/8″	270	6.0	65	65	30
WH-6.5×250	10″	250	6.5	65	85	38
WH-6.5×300	11 5/8″	300	6.5	80	85	38
WH-6.5×350	13 3/4″	350	6.5	90	85	38
WH-6.5×400	15 3/4″	400	6.5	105	85	38
WH-6.5×450	17 3/4″	450	6.5	125	85	38
WH-6.5×500	19 11/16″	500	6.5	145	85	38
