Overview

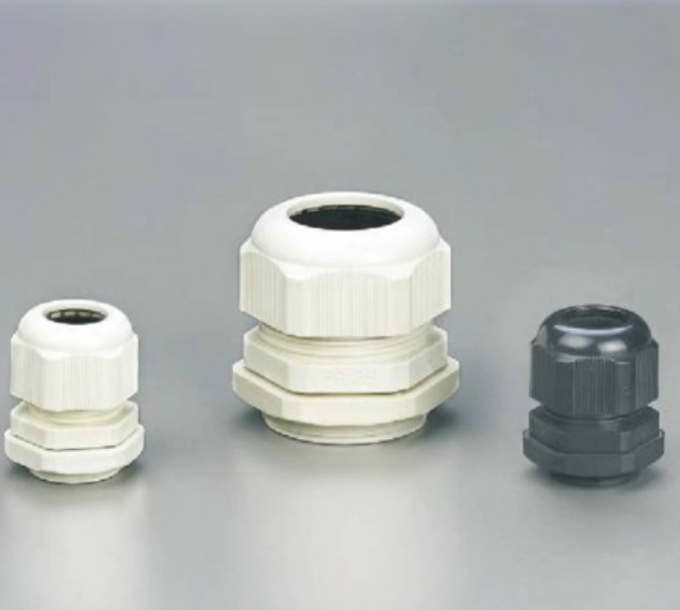

◆ Material: made from UL Nylon 66, 94V-2 and tighten ring from rubber.
◆ Feature:
1.Special design of clamp ring, good clamping strength and protective for electric machinery.
2.No need of disassembling the cable gland, cable can go through directly then tighten it, easy to operate and save time.
◆ Application：used for machinery control box, distribution plate, machine and electrical, etc.
Technical Parameters

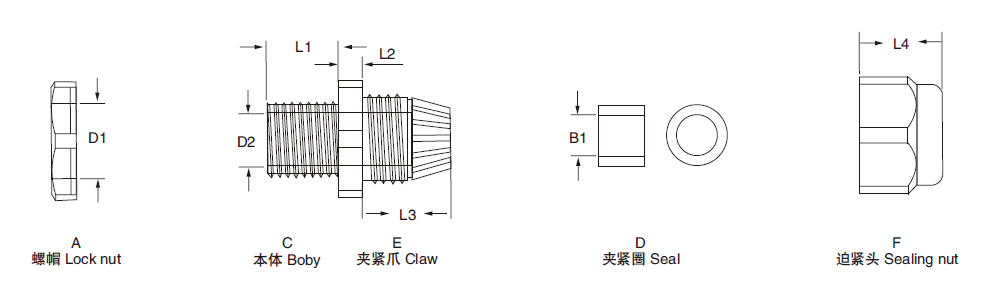

| 编 号 | 编 号 | D1(mm) | D2(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | B1(mm) | 电缆直径范围Cable range |
| Item NO. | Item NO. | ||||||||
| PG-07 | M12X1. 5 | 12.1 | 8.7 | 8.3 | 5 | 15 | 13.8 | 6.9 | 3.5-6 |
| PG-09 | M16X1.5 | 16.2 | 11.1 | 8.7 | 4.6 | 16.1 | 15.7 | 8.9 | 4-8 |
| PG-11 | M18X1.5 | 18.2 | 13.4 | 8.7 | 5.1 | 18.1 | 17.9 | 11.3 | 5-10 |
| PG-13.5 | M20X1.5 | 20.1 | 15.5 | 8.9 | 5 | 19.2 | 18.3 | 12.8 | 6-12 |
| PG-16 | M22 X1.5 | 22.3 | 17.6 | 11.3 | 5.2 | 20.2 | 18.1 | 13.7 | 10-12 |
| PG-19 | M24X1.5 | 24.1 | 19.1 | 11.1 | 5.1 | 21.1 | 20.5 | 15.8 | 12-15 |
| - | M25 X1.5 | - | - | - | - | - | - | - | - |
| PG-21 | M27X 1.5 | 26.7 | 21.4 | 11.1 | 5.1 | 23 | 22 | 17.4 | 13-18 |
| PG-25 | M30X 1.5 | 30.1 | 24.8 | 12.8 | 5.8 | 23.9 | 23.7 | 23.1 | 15-22 |
| - | M32 X1.5 | - | - | - | - | - | - | - | - |
| PG-29 | M36X1.5 | 35.9 | 28.8 | 11.9 | 6.9 | 24.4 | 23.5 | 25.3 | 18-25 |
| PG-36 | M40X1.5 | 46.4 | 39.1 | 16 | 7.8 | 30.7 | 27.3 | 31.9 | 22-32 |
| PG-42 | M50X1.5 | 53.9 | 46.7 | 15.4 | 7.9 | 33.2 | 28.5 | 37.1 | 30-38 |
| PG-48 | M63X1.5 | 60.2 | 52.6 | 18 | 7.9 | 35.5 | 30.3 | 45.1 | 34-44 |
| PG-63 | - | 70.6 | 63.9 | 28.9 | 8.9 | 41.4 | 41.3 | 49.3 | 42-54 |
