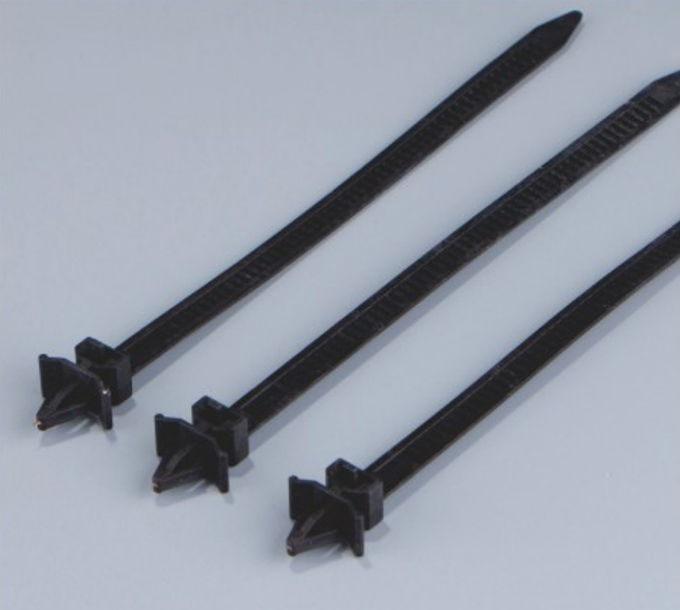

Overview
◆Material：Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Natural, Black,UV black, other colors are available as requested.
Technical Parameters

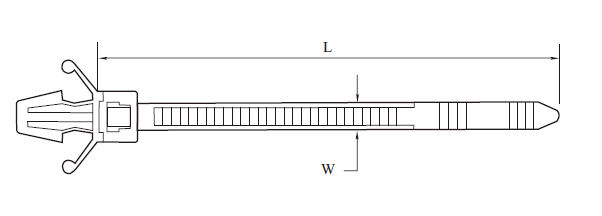

| 编 号 Item NO. | L(长) | W(宽) (mm) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | 孔径(φ) Hole Dia. | 机板厚度 Panel Thickness | ||||
| Inch | mm | LBS | KGS | Inch | mm | Inch | mm | |||
| WH-100PT | 4″ | 100 | 2.5 | 22 | 18 | 8.0 | 0.189 | 4.8 | 0.094 | 2.4 |
| WH-120PT | 4 3/4″ | 120 | 3.2 | 25 | 30 | 13.6 | 0.157 | 4.0 | 0.079 | 2.0 |
| WH-120PPT | 4 3/4″ | 120 | 4.8 | 25 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
| WH-123PT | 4 4/5″ | 123 | 3.5 | 26 | 40 | 18.0 | 0.157 | 4.0 | 0.079 | 2.0 |
| WH-160PT | 6 1/4″ | 160 | 4.8 | 38 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
| WH-190PT | 7 1/2″ | 190 | 4.8 | 45 | 50 | 22. | 0.252 | 6.4 | 0.126 | 3.2 |
