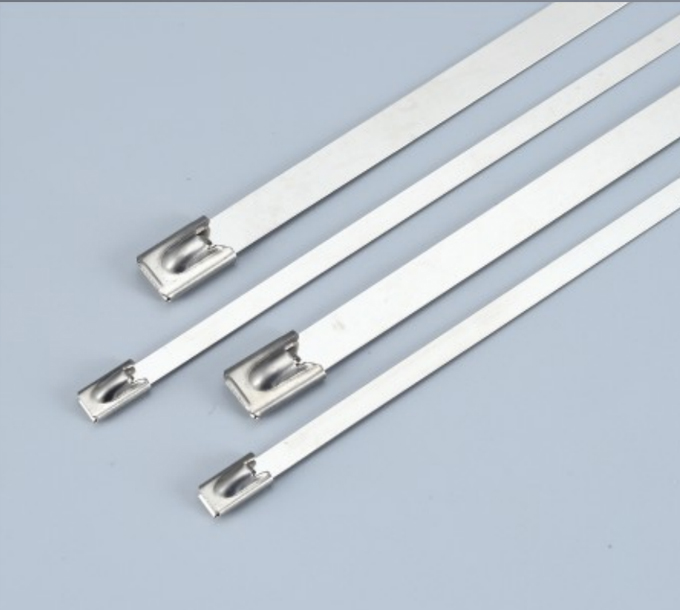

Stainless steel Cable Ties

NYLON CABLE TIE SERIES

Product details 01

Overview

◆Material:Stainless steel type: 201,304,316, all length are available,special sizes can be customized;
◆Characteristic:Acid-resisting, anti-corrosion, high tensile strength,simple and easy to use, etc.
◆Application temperature:-60℃ to 150℃

Technical Parameters

编号 Item NO.	长度		宽度 (mm)	厚度 (mm)	（最大）捆扎范围 Max.bundle Dia.(mm)	最小拉力 Tensile Strength
编号 Item NO.	INCH	MM	宽度 (mm)	厚度 (mm)	（最大）捆扎范围 Max.bundle Dia.(mm)	LBS	KGS
SAT-100	4”	100	3.5	0.25	25	130	60
SAT-152	6”	152	3.5	0.25	35	130	60
SAT-175	61/4”	175	3.5	0.25	40	130	60
SAT-200	8”	200	3.5	0.25	50	130	60
SAT-250	10”	250	3.5	0.25	65	130	60
SAT-300	115/8”	300	3.5	0.25	80	130	60
SAT-360	141/2”	360	3.5	0.25	95	130	60
SAT-400	153/4”	400	3.5	0.25	105	130	60
SST-100	4”	100	4.6	0.25	25	225	100
SST-152	6”	152	4.6	0.25	35	225	100
SST-175	61/4”	175	4.6	0.25	40	225	100
SST-200	8”	200	4.6	0.25	50	225	100
SST-250	10”	250	4.6	0.25	65	225	100
SST-300	115/8”	300	4.6	0.25	80	225	100
SST-360	141/2”	360	4.6	0.25	95	225	100
SST-400	153/4”	400	4.6	0.25	105	225	100
SST-450	173/4”	450	4.6	0.25	127	225	100
SST-500	1911/16”	500	4.6	0.25	145	225	100
SST-520	211/16”	520	4.6	0.25	150	225	100
SST-600	235/8”	600	4.6	0.25	175	225	100
SST-680	259/16”	680	4.6	0.25	195	225	100
SST-750	299/16”	750	4.6	0.25	220	225	100
SST-840	32”	840	4.6	0.25	250	225	100
SST-900	361/4”	900	4.6	0.25	270	225	100
SST-1050	401/6”	1050	4.6	0.25	285	225	100
SST-1200	48”	1200	4.6	0.25	350	225	100
SLT-152	6”	152	7.9	0.25	35	330	150
SLT-175	61/4”	175	7.9	0.25	40	330	150
SLT-200	8”	200	7.9	0.25	50	330	150
SLT-250	10”	250	7.9	0.25	65	330	150
SLT-300	115/8”	300	7.9	0.25	80	330	150
SLT-360	141/2”	360	7.9	0.25	95	330	150
SLT-400	153/4”	400	7.9	0.25	105	330	150
SLT-450	173/4”	450	7.9	0.25	127	330	150
SLT-500	1911/16”	500	7.9	0.25	145	330	150
SLT-520	211/16”	520	7.9	0.25	150	330	150
SLT-600	235/8”	600	7.9	0.25	175	330	150
SLT-680	259/16”	680	7.9	0.25	195	330	150
SLT-750	299/16”	750	7.9	0.25	220	330	150
SLT-840	32”	840	7.9	0.25	250	330	150
SLT-900	361/4”	900	7.9	0.25	270	330	150
SLT-1050	401/6”	1050	7.9	0.25	285	330	150
SLT-1200	48”	1200	7.9	0.25	350	330	150
SMT-300	361/4”	300	10	0.25	80	440	200
SMT-360	401/6”	360	10	0.25	95	440	200
SMT-400	48”	400	10	0.25	105	440	200
SMT-520	211/16”	520	10	0.25	150	440	200
SMT-600	235/8”	600	10	0.25	175	440	200
SMT-680	259/16”	680	10	0.25	195	440	200
SMT-750	299/16”	750	10	0.25	220	440	200
SMT-840	32”	840	10	0.25	250	440	200
SMT- 900	361/4”	900	10	0.25	270	440	200
SMT- 1050	401/6”	1050	10	0.25	285	440	200
SMT- 1200	48”	1200	10	0.25	350	440	200
SBT-300	115/8”	300	12	0.35	80	550	250
SBT-360	141/2”	360	12	0.35	95	550	250
SBT-400	153/4”	400	12	0.35	105	550	250
SBT-520	211/16”	520	12	0.35	150	550	250
SBT-600	235/8”	600	12	0.35	175	550	250
SBT-680	259/16”	680	12	0.35	195	550	250
SBT-750	299/16”	750	12	0.35	220	550	250
SBT-840	32”	840	12	0.35	250	550	250
SBT-900	361/4”	900	12	0.35	270	550	250
SBT-1050	401/6”	1050	12	0.35	285	550	250
SBT-1200	48”	1200	12	0.35	350	550	250
SHT-300	115/8”	300	15	0.35	80	660	300
SHT-360	141/2”	360	15	0.35	95	660	300
SHT-400	153/4”	400	15	0.35	105	660	300
SHT-520	211/16”	520	15	0.35	150	660	300
SHT-600	235/8”	600	15	0.35	175	660	300
SHT-680	259/16”	680	15	0.35	195	660	300
SHT-750	299/16”	750	15	0.35	220	660	300
SHT-840	32”	840	15	0.35	250	660	300
SHT-900	361/4”	900	15	0.35	270	660	300
SHT-1050	401/6”	1050	15	0.35	285	660	300
SHT-1200	48”	1200	15	0.35	350	660	300
