Overview
◆ Material：Nylon 66 94v-2 agreed by UL.
◆ Usage： put cable in, fix by screw.
Technical Parameters

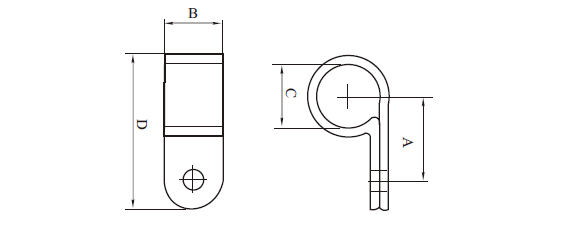

| 规格NORMS | A | B | C | D | E | 包装Packing |
| U3.3(1/8) | 9.5 | 9 | 3.3 | 17 | 4 | 1000PCS |
| U5.2(3/16) | 10.5 | 9.6 | 5.2 | 18.5 | 4 | |
| R5.3(3/16) | 10.5 | 9.6 | 5.3 | 18.5 | 4 | |
| R6.4(1/4) | 12 | 9.6 | 6.4 | 21 | 4 | |
| R8.4(5/16) | 12.5 | 9.6 | 8.4 | 22.8 | 4 | |
| R10.4(3/8) | 13.5 | 9.6 | 10.4 | 23.8 | 4 | |
| R13.2(1/2) | 13.5 | 12 | 12.7 | 25.8 | 4 | |
| R16(5/8) | 16.5 | 13 | 15.8 | 30.5 | 4 | |
| R19(3/4) | 17 | 12.7 | 19 | 35.5 | 4.5 | 500PCS |
| R23(1) | 26 | 12.5 | 25 | 44 | 5 | 200PCS |
| R30(11/16) | 23 | 9.5 | 30 | 47 | 5 | |
| R50(11/2) | 41 | 9.5 | 50 | 77 | 5 | 100PCS |
| UC-1.5(5/16) | 8.2 | 10 | 3.2 | 19 | 5 | 1000PCS |
| UC-2(3/8) | 10.5 | 10 | 4.8 | 20 | 5 | |
| UC-3(1/2) | 10.1 | 12 | 6.47.9 | 24.7 | 5 | |
| UC-4(5/8) | 11.5 | 12 | 9.5 | 31.5 | 5 | |
| UC-5(3/4) | 12.3 | 12 | 12.7 | 33 | 5 | 500PCS |
| UC-9(11/2) | 16.1 | 12 | 15.8 | 38.5 | 5 | 100PCS |
| CC-0(1/8) | 18.3 | 12 | 19.4 | 61 | 5 | 1000PCS |
| 00-0.5(3/16) | 20.3 | 9.6 | 36.7 | 17 | 5 | |
| CC-1(1/4) | 35.5 | 9.6 | 3.1 | 18.6 | 5 | |
| CC-1.5(5/16) | 8 | 10 | 5 | 20 | 4.8 | |
| CC-2(3/8) | 9.2 | 10 | 6.4 | 22 | 4.8 | |
| CC-3(1/2) | 10 | 12 | 7.9 | 24 | 4.6 | |
| CC-4(5/8) | 12 | 12 | 9.5 | 31 | 4.6 | |
| CC-5(3/4) | 12.5 | 12 | 12.7 | 34.3 | 4.6 | 500PCS |
| CC-6(1) | 15.2 | 11.8 | 15.8 | 35 | 5 | |
| CC-6.5(11/16) | 18.2 | 12 | 19.4 | 43 | 4.6 | |
| CC-7(11/4) | 18.2 | 12 | 25.4 | 50 | 4.6 | |
| CC-9(11/2)1 | 22 | 12 | 27.5 | 46.2 | 4.6 | 100PCS |
