Overview
Industrial Plugs & Socket, as the name suggests, are suitable for industry, and are generally used in conjunction with industrial sockets and industrial connectors. Simply put, the connectors are connected to a male and a female plug respectively, and then plugged into each other.
Product Fetures
The contact pressure is equalized;
The socket terminal housing is of high-temperature resistance;
Good liquid erosion resistance ensures consistency and reliability;
Better compressure capacity is enriched by the robust structure and solid material;

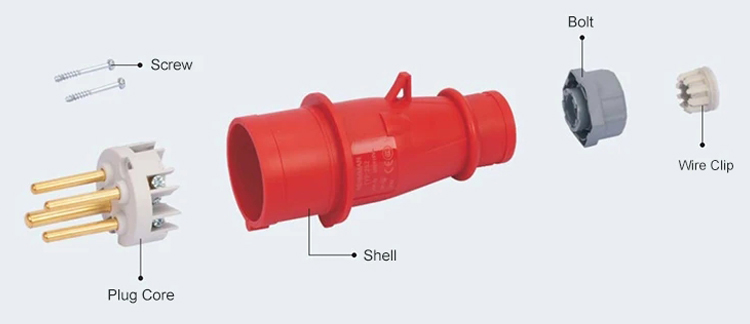

The contact pins are made by nickel-plated brass, ensuring a stable conductive performance;
PP/PA material made sleeve and ergonomic design make the socket very easy to connect and disconnect.
| Industrial plugs & Socket Connector | |
| Number of Positions | 3Pin(2P+E) / 4Pin(3P+E) / 5Pin(3P+E+N) |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | PCB Mount / Panel Mount / Cable |
| Shell Material | Nylon + PA66 |
| Contacts Material | Nickel Plated Brass, Brass |
| Rated Current | 16A / 32A / 63A / 125A |
| Rated Voltage | 110V-130V / 220V-250V / 380V-415V / 500V |
| Frequency | 50/60HZ |
| Grounding | 4H / 6H / 7H / 9H |
| Temperature Range | -25°C ~ + 80°C |
| IP Rating | IP44 / IP67 |
| Color | Yellow / Blue / Red |

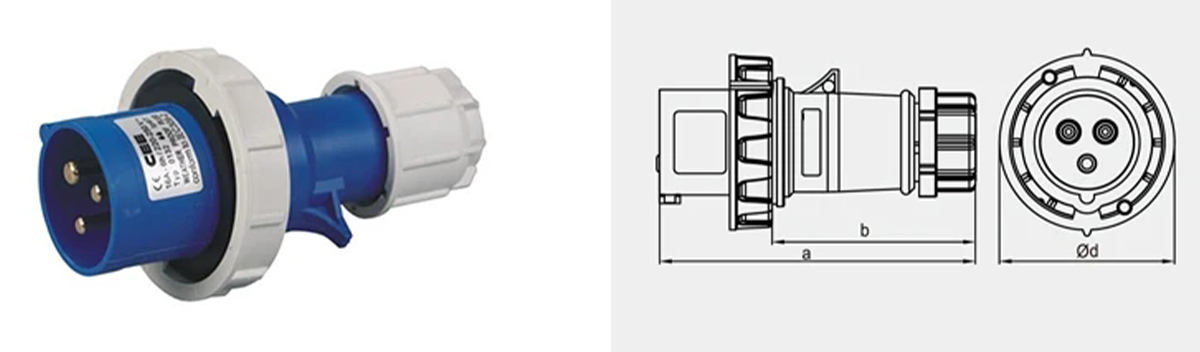

Product Appearance Size
 | A | P | 110v 50a60HZ | 230v 50a60HZ | 400v 50a60HZ | 500v 50a60HZ | >50-500V | |
| 3P4P5P 4H4H4H | 3P4P5P 6H9H9H | 3P4P5P 6H9H9H | 3P4P5P 7H7H7H | 3P4P5P 10H10H10H | 3P4P5P 2H2H2H | |||
| 16 | 3 | 147a | 148a | 149a | ||||
| Selection Code | 16 | 4 | 150a | 151a | 152a | 153a | ||
| 16 | 5 | 154a | 155a | 13a | ||||
| 32 | 3 | 159a | 160a | 161a | ||||
| 32 | 4 | 162a | 163a | 164a | 165a | |||
| 32 | 5 | 166a | 167a | 14a | ||||
| 63 | 3 | 1570 | 1571 | 1572 | ||||
| 63 | 4 | 1108 | 1109 | 1110 | 1111 | |||
| 63 | 5 | 1112 | 1113 | 1114 | 2958 | |||
| 125 | 3 | 3399 | 3400 | |||||
| 125 | 4 | 1441 | 1442 | 1443 | 1444 | |||
| 125 | 5 | 1445 | 1446 | 1447 | 3173 | |||
