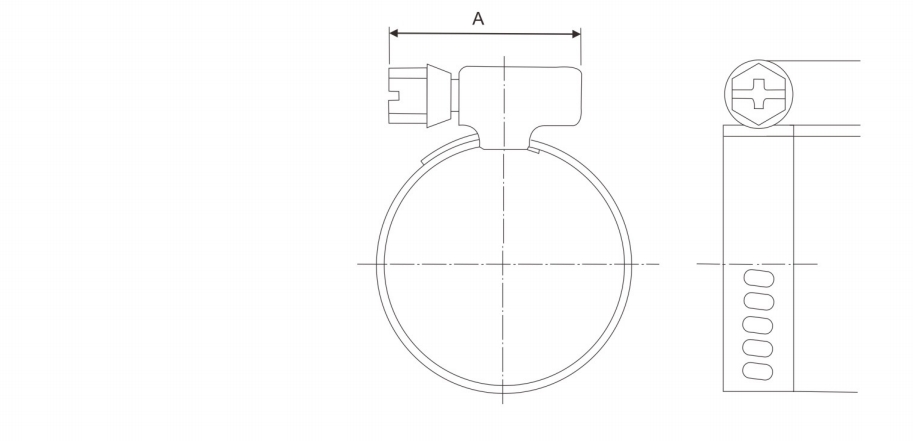

| 使用范围Userange(mm) | (L带宽9mmStrip Width9mm | (L)带宽12mmStrip Width12mm | (L)带宽13mmStrip Width13mm | 包装数量袋/箱PackingSize | A | B | D | 耐压强度Pressure-resistancestrength(Mpa/cm²） | 抗扭矩值Antltorpuevalte(N.m) |
| 8-12 | 7610090012 | 100/2000 | 20 | 10 | 12 | 1.4 | 25-5 | ||
| 10-16 | 7610090016 | 100/2000 | 20 | 10 | 16 | 1.4 | 25-5 | ||
| 12-20 | 7610090020 | 7810130020 | 100/1000 | 20 | 10 | 20 | 1.4 | 25-5 | |
| 12-22 | 7610090022 | 7810130022 | 100/1000 | 20 | 10 | 22 | 1.4 | 25-5 | |
| 16-25 | 7610090025 | 7710120025 | 7810130025 | 100/1000 | 20 | 10 | 25 | 1.4 | 25-6 |
| 16-27 | 7610090027 | 7710120027 | 7810130027 | 100/1000 | 20 | 10 | 27 | 1.4 | 25-6 |
| 20-32 | 7610090032 | 7710120032 | 7810130032 | 100/1000 | 25 | 10 | 32 | 0.7 | 25-6 |
| 25-40 | 7610090040 | 7710120040 | 7810130040 | 100/1000 | 25 | 10 | 40 | 0.7 | 35-7 |
| 30-45 | 7610090045 | 7710120045 | 7810130045 | 100/1000 | 25 | 10 | 45 | 0.7 | 35-7 |
| 32-50 | 7610090050 | 7710120050 | 7810130050 | 100/1000 | 25 | 10 | 50 | 0.7 | 35-7 |
| 40-60 | 7610090060 | 7710120060 | 7810130060 | 100/1000 | 25 | 10 | 60 | 0.7 | 35-7 |
| 50-70 | 7610090070 | 7710120070 | 7810130070 | 50/500 | 25 | 10 | 70 | 0.7 | 35-7 |
| 60-80 | 7610090080 | 7710120080 | 7810130080 | 50/500 | 25 | 10 | 80 | 0.3 | 5-10 |
| 70-90 | 7610090090 | 7710120090 | 7810130090 | 50/500 | 25 | 10 | 90 | 0.3 | 5-10 |
| 80-100 | 7610090100 | 7710120100 | 7810130100 | 20/300 | 25 | 10 | 100 | 0.3 | 5-10 |
| 90-110 | 7610090110 | 7710120110 | 7810130110 | 20/300 | 25 | 10 | 110 | 0.3 | 5-10 |
| 100-120 | 7610090120 | 7710120120 | 7810130120 | 20/300 | 25 | 10 | 120 | 0.3 | 5-10 |
| 110-130 | 7610090130 | 7710120130 | 7810130130 | 20/300 | 25 | 10 | 130 | 0.3 | 5-10 |
| 120-140 | 7610090140 | 7710120140 | 7810130140 | 20/300 | 25 | 10 | 140 | 0.3 | 5-10 |
| 130-150 | 7610090150 | 7710120150 | 7810130150 | 20/300 | 25 | 10 | 150 | 0.3 | 5-10 |
| 140-160 | 7610090160 | 7710120160 | 7810130160 | 20/300 | 25 | 10 | 160 | 0.3 | 5-10 |
