Overview
◆Material：Nylon 6.6 or nylon 12, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature：-40℃ to 85℃
◆Installation temperature：-20℃ to 85℃
◆Color：Black,UV black
◆Feature：Tensile strong and not easy to trip.
Technical Parameters

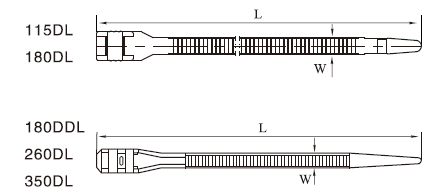

| 编 号 Item NO. | L(长) | W（宽） (mm) | (最大)捆扎范围 Max.Bundle DIA.(mm) | 最小拉力 Tensile Strength | ||
| Inch | mm | PA12(KGS) | PA66(KGS) | |||
| WH-115DL | 51/8″ | 115 | 6.0 | 22 | 18 | 35 |
| WH-180DL | 7″ | 180 | 6.0 | 45 | 18 | 35 |
| WH-180DDL | 7″ | 180 | 9.0 | 45 | 25 | 40 |
| WH-260DL | 101/4″ | 260 | 9.0 | 66 | 40 | 50 |
| WH-350DL | 135/8″ | 350 | 9.0 | 90 | 40 | 50 |
